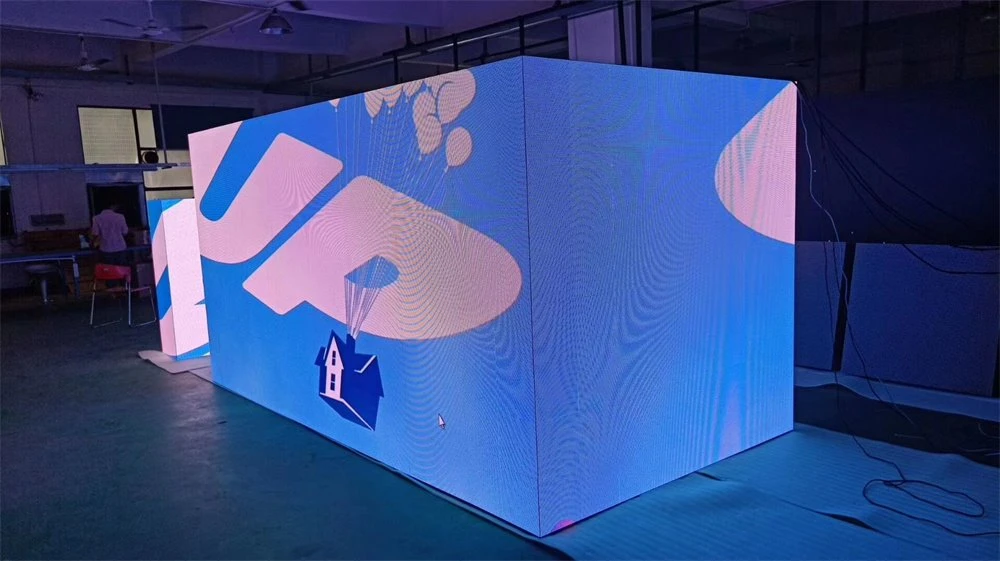

Qhov zoo ntawm 90 degree Right Angle LED Zaub

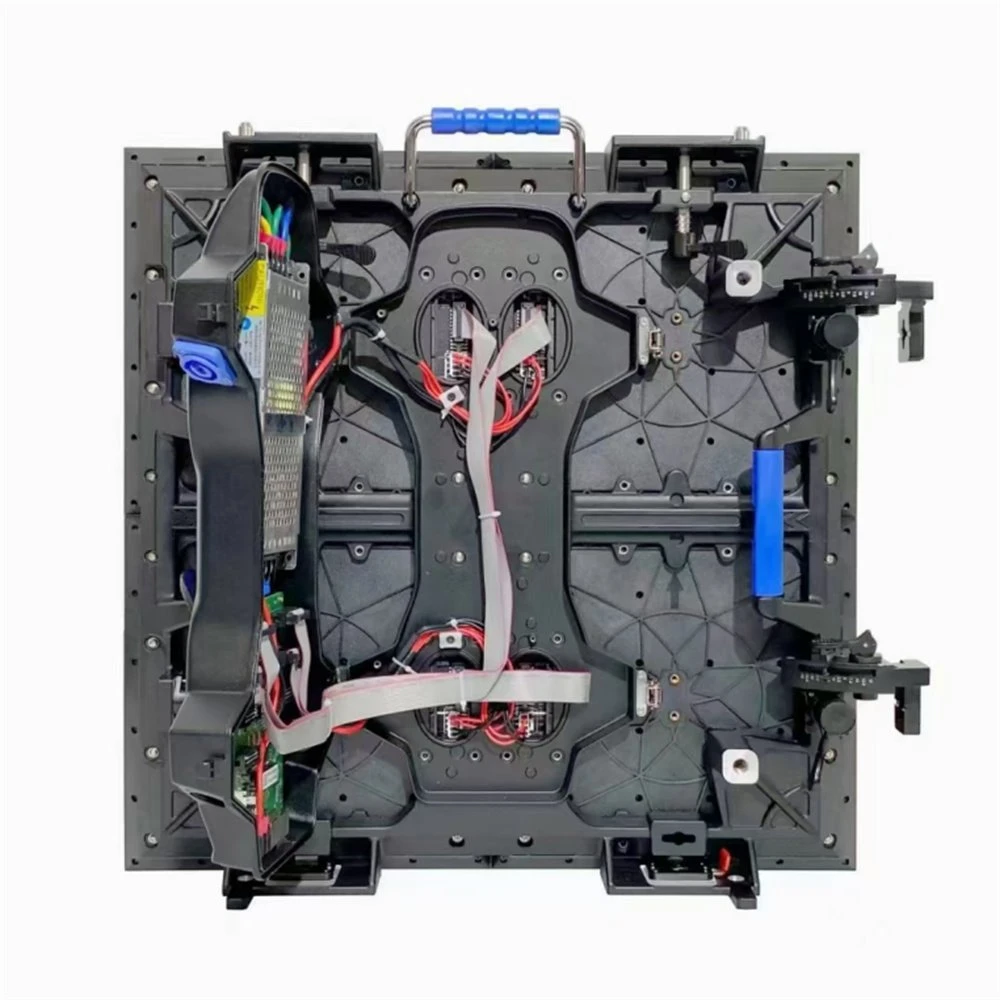

● Lub beveled ntug tuag-casting txhuas txee tsim ua rau LED zaub screen ntau tiaj, sib dua thiab ruaj khov.
● Cov txee xauv yog ua los ntawm cov khoom siv hlau muaj zog nrog kev ua haujlwm siab thiab corrosion tsis kam; pem hauv ntej thiab nram qab hom kev txij nkawm txuag tau ntau ntawm kev ua haujlwm, sijhawm thiab nqi.
● Lub teeb txee tsim ultra-lub teeb, tsuas yog 7kg, ua rau LED zaub yooj yim thauj thiab nruab thiab rhuav tshem.
● High contrast, siab refresh npaum li cas, siab txhais, muab cov duab meej thiab pom kev nrog super saib lub kaum ntse ntse.
● Cov xauv nrawm thiab tsim qauv tsim ua rau LED zaub super tiaj tus thiab tuaj yeem ua seamlessly spliced.
High Performance LED Zaub Module
● 90 degree txoj cai kaum sab xis LED video screen nrog beveled ntug adopts 4 daim ntawm 250x250mm puv xim SMD 3-hauv-1 LED zaub, haum rau P2.604, P2.976, P2.391, P4. 81.
● Lub LED zaub module yog ua los ntawm high-zoo LED teeb hlaws dai thiab tsav IC kom ntseeg tau tias LED zaub muaj siab refresh npaum li cas thiab siab sib piv.
45 degree bevel tsim
Lub txee txais ib qho tshwj xeeb beveled ntug tsim, uas ua rau LED zaub feature lub kaum sab xis ntawm 90 degree. Txhua lub ces kaum ntawm lub txee yog inclined ntawm 45 degree, yog li ntawd lub txee yuav seamlessly spliced thiab yooj yim rau assemble. Nyob rau tib lub sijhawm, LED zaub npo tuaj yeem tsim los rau hauv qhov tsim nyog cubic LED zaub screen tsis muaj qhov khoob ntawm ntug.
Specification
Khoom npe | Lub kaum sab xis LED Video Screen | |||
Khoom No. | P2.604 | P2.976 | P3.91 | P4.81 |
LED Teeb | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
Chip Xim | RGB (Full Xim) | RGB (Full Xim) | RGB (Full Xim) | RGB (Full Xim) |
Pixel Ceev | 147456 pixels / m² | 112896 pixels / m² | 65536 pixels / m² | 43264 pixels / m² |
Module daws teeb meem | 96 * 96 pixels | 84 * 84 pixels | 64 * 64 pixels | 52 * 52 pixels |
Module Loj | 250 * 250 hli | 250 * 250 hli | 250 * 250 hli | 250 * 250 hli |
Module Nyhav | 0.35Kg | 0.35Kg | 0.35Kg | 0.35Kg |
Txee Loj | 500 * 500 hli | |||
Txwj Laug Resolution | 192 * 192 pixels | 168 * 168 pixels | 128 * 128 pixels | 104 * 104 pixels |
Refresh Rate | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz | 1920Hz / 3840Hz |
Txee Qhov hnyav | 7 Kg | |||
Hom Kev Kho Mob | Pem hauv ntej / Back Service | |||
Txee Khoom | Tuag-casting aluminium | |||
Lub zog nkag | AC 110-240V, 50-60Hz | |||
IP Qib | IP45 | |||
Brightness | 600-1000 noj | |||
Pom qhov nrug zoo tshaj | 2.6m | 3m | 4m | 5m |
